PHILIPPGRUPPE Aschaffenburg

PB system

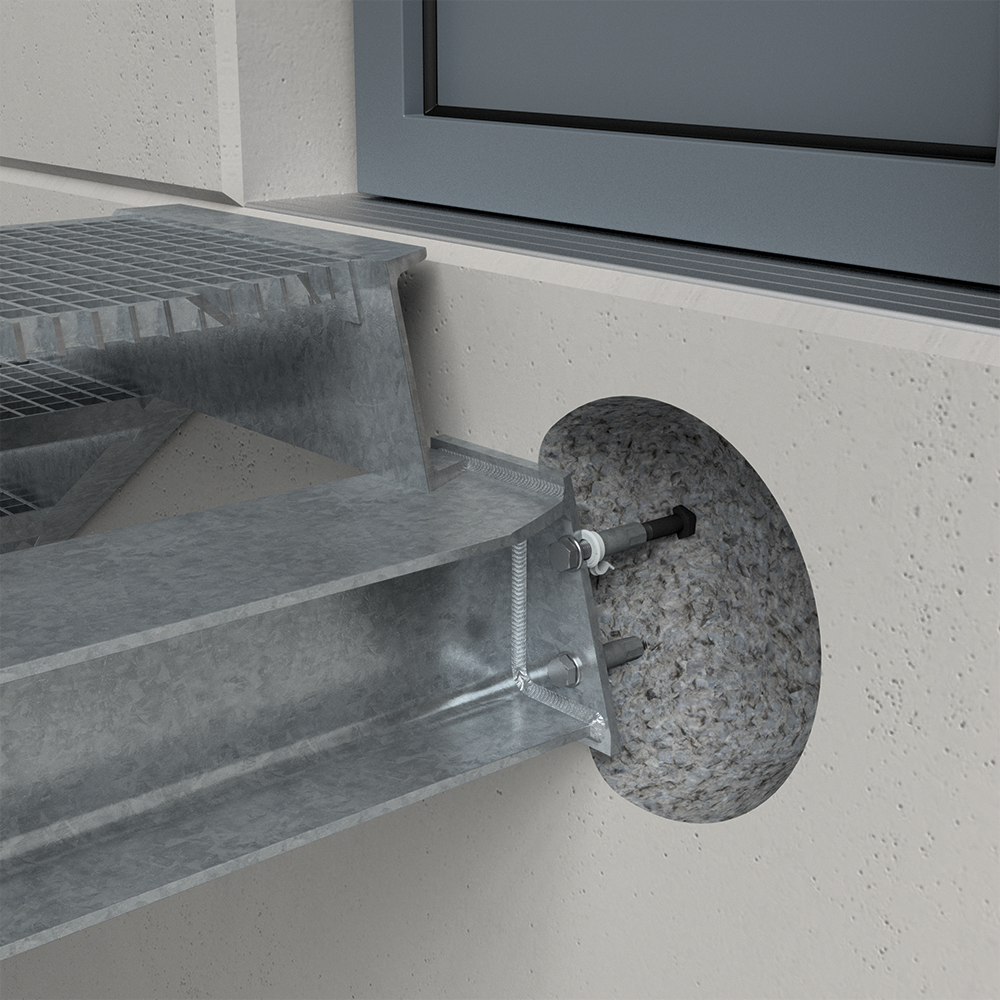

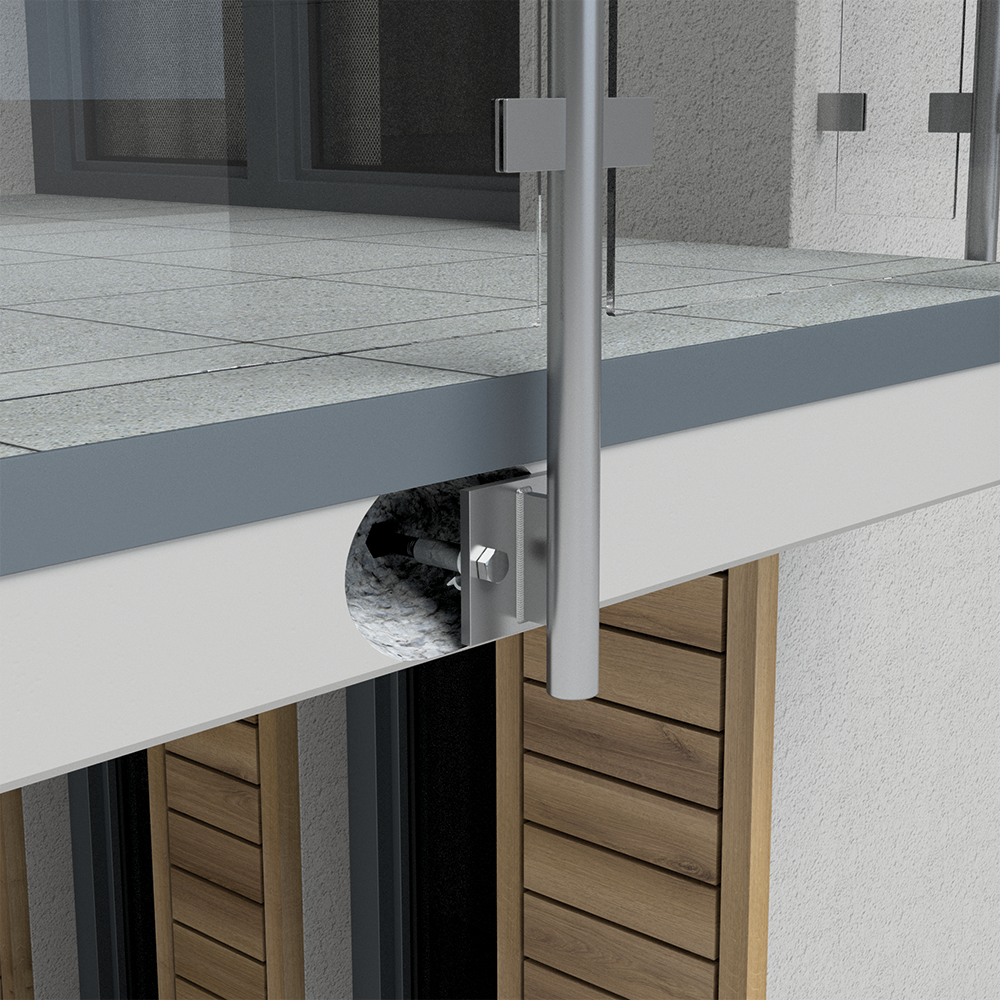

These approved, high-performance internal threaded anchors in five different sizes (RD12-30) can be used wherever load-bearing structures are to be subsequently attached to prefabricated reinforced concrete or cast-in situ concrete elements. No matter whether in un/reinforced and un/cracked normal concrete, the PB anchors transmits tensile and shear loads or a combination thereof safely and permanently. Different installation options (surface-flush, recessed) and materials (galvanised or stainless steel type) enable a wide range of applications.

SKU: 2081 Category:
Request Product

These approved, high-performance internal threaded anchors in five different sizes (RD12-30) can be used wherever load-bearing structures are to be subsequently attached to prefabricated reinforced concrete or cast-in situ concrete elements. No matter whether in un/reinforced and un/cracked normal concrete, the PB anchors transmits tensile and shear loads or a combination thereof safely and permanently. Different installation options (surface-flush, recessed) and materials (galvanised or stainless steel type) enable a wide range of applications.

  • certified system (ETA approval)
  • multi-purpose, permanent fixing of all types of constructions
  • flexible formwork installation – recessed or surface-flush
  • easy, software-based design acc. to EN 1992-4:2018
CAD wird geladen …
